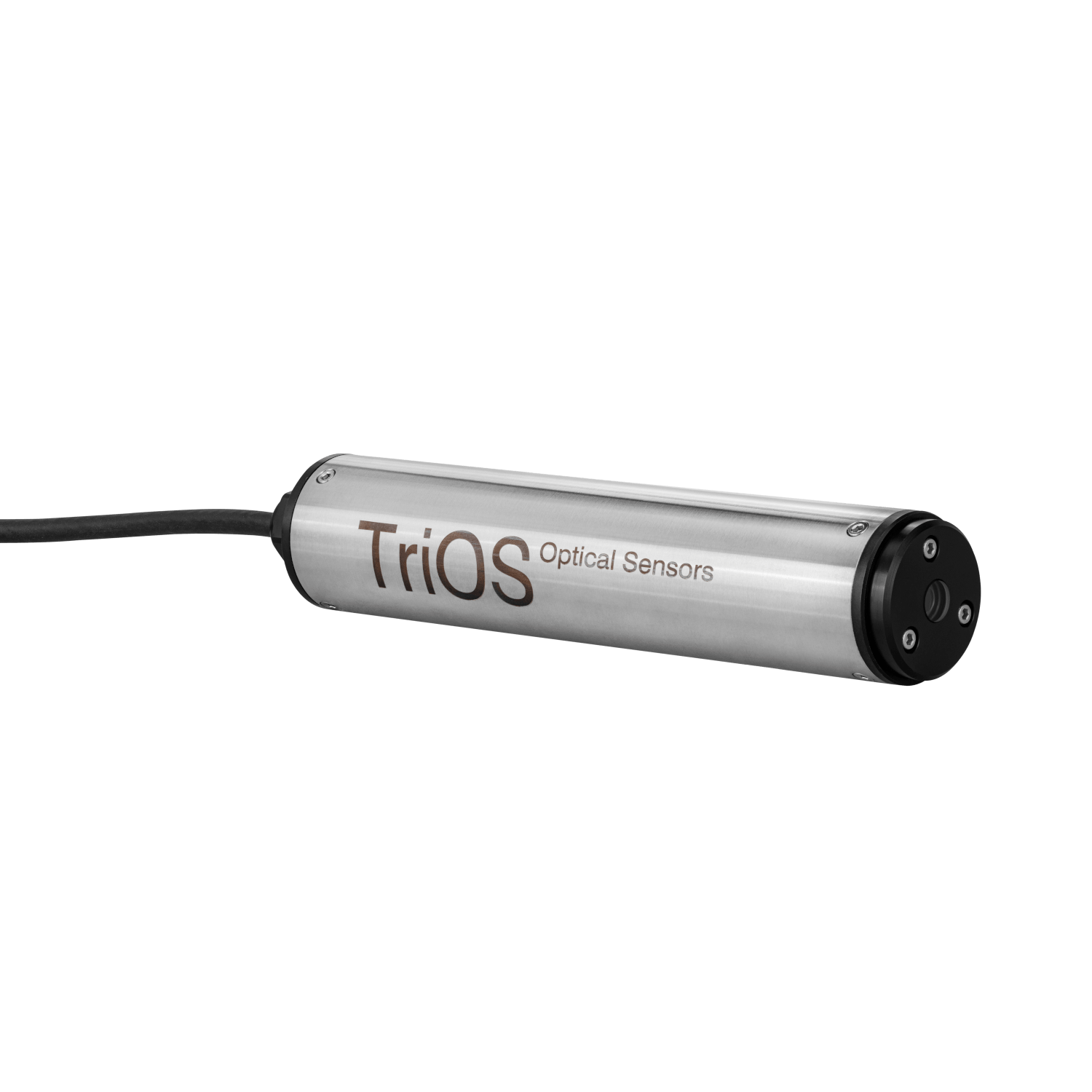

nanoFlu
Online fluorometer for determination of colourings and pigments by measurements of fluorescence emission.
Miniature fluorometer
nanoFlu fluorometers are low-priced, submersible miniaturized fluorometers for highly precise and selective measurement of CDOM (colored dissolved organic matter, yellow substances), chlorophyll a or phycocyanin in cyanobacteria. Long-term stability of measurements is ensured by the combination of low power consumption and innovative coating of the optical window, as an energy efficient and environmentally friendly anti-fouling solution. The devices can be used in diverse applications for the monitoring of sea and river waters, as well as in drinking- and wastewater treatment systems. Internal reference signals of the high performance LEDs used for fluorescence excitation compensate aging effects and temperature influences.
Benefits
- High sensitivity
- Nano-coating
- Fast data acquisition
- Electronic light compensation
- Low power consumption
Areas of application
- Surface water
- Bathing lakes
- Drinking water production and treatment
- Raw water treatment
- Environmental monitoring

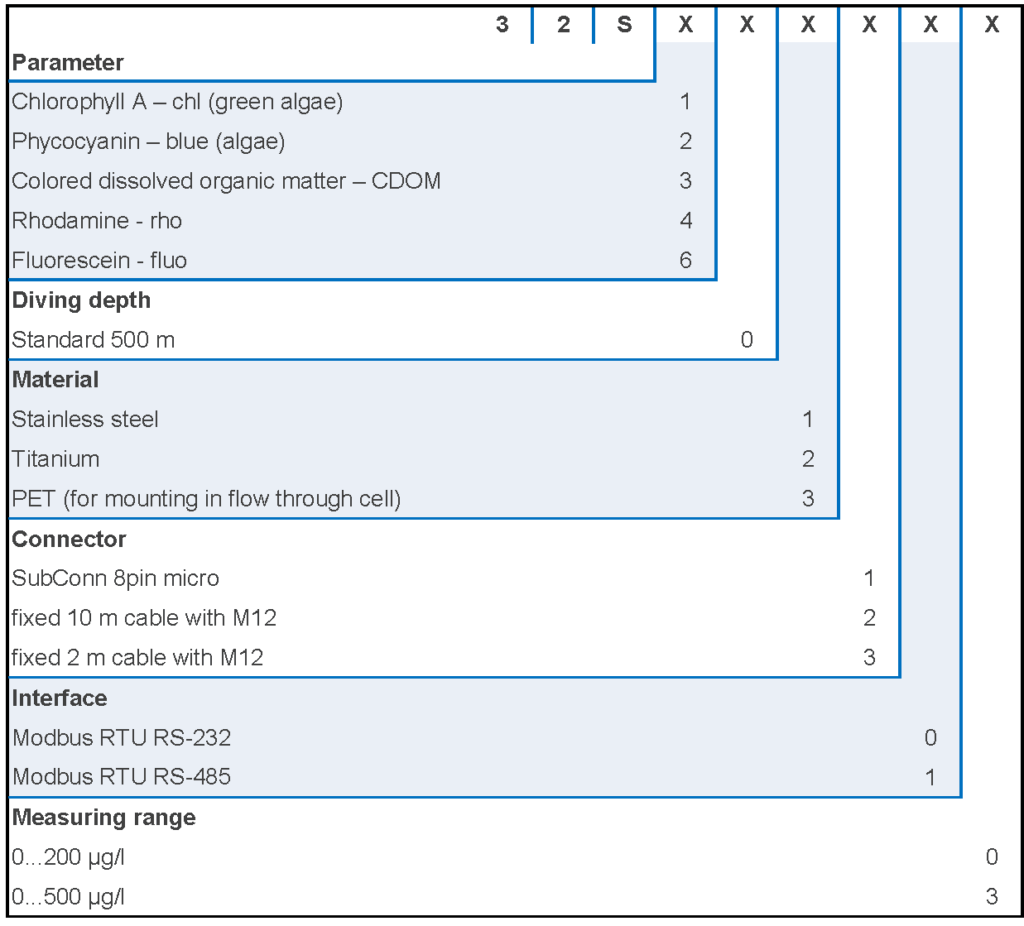

Parameters
- CDOM
- chlorophyll a
- phycocyanin
- rhodamin
- fluorescein
Technical Data
| Light source | LED | ||
| Detector | Photo diodes | ||
| Measurement principle | Fluorescence | ||
| Parameter | CDOM [µg/L] | ||
| or chlorophyll a [µg/L] | |||
| or phycocyanin [µg/L] | |||
| or rhodamine [µg/L] | |||
| or fluorescein [µg/L] | |||
| Measurement range | 0…200 μg/L | ||
| Measurement accuracy | ± 5 % | ||
| Turbidity compensation | No | ||
| Data logger | No | ||
| T100 response time | 6 s | ||
| Measurement interval | 3 s | ||
| Housing material | Stainless steel (1.4571/1.4404) or titanium (3.7035) | ||
| Dimensions (L x Ø) | 171 mm x 36 mm | ~ 6.7“ x 1.4“ | |
| Weight stainless steel | 0.5 kg | ~ 1.1 lbs | |
| Weight titanium | 0.4 kg | ~ 0.9 lbs | |
| Interface digital | Ethernet (TCP/IP), RS-232 or RS-485 (Modbus RTU) | ||
| Power consumption typical | < 1 W | ||
| Power consumption with network | < 1,6 W | ||
| Power supply | 12…24 VDC (± 10 %) | ||
| Maintenance effort | ≤ 0.5 h/month (typical) | ||
| Calibration/maintenance interval | 24 months | ||
| System compatibility | Modbus RTU | ||
| Warranty | 1 year (EU: 2 years) | US: 2 years | |
| Max. pressure with SubConn | 30 bar | ~ 435 psig | |
| Max. pressure with fixed cable | 3 bar | ~ 43.5 psig | |
| Max. pressure in FlowCell | 1 bar, 2…4 L/min | ~ 14.5 psig, 0.5 to 1 gpm | |
| Protection type | IP68 | NEMA 6P | |
| Sample temperature | +2…+40 °C | ~ +36 °F to +104 °F | |
| Ambient temperature | +2…+40 °C | ~ +36 °F to +104 °F | |
| Storage temperature | -20…+80 °C | ~ -4 °F to +176 °F | |
| Inflow velocity | 0.1…10 m/s | ~ 0.33 fps to 33 fps |
