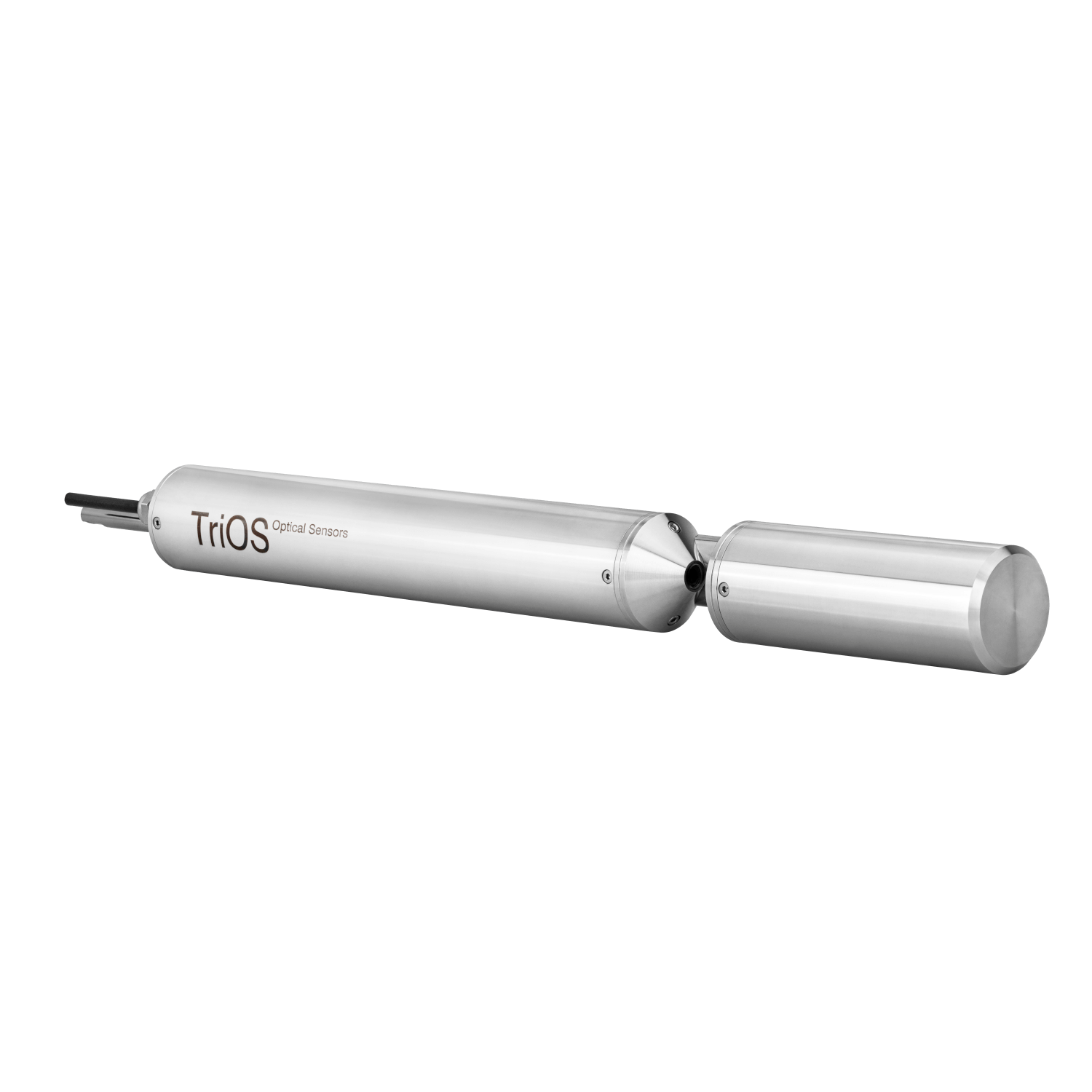

NICO
Digital, optical photometric in-situ sensor for nitrate with turbidity compensation.
TriOS introduces NICO: a low-cost UV photometer for the determination of nitrate. The four detection channels enable a precise optical determination of nitrate by absorption, taking into account turbidity and organic substances that pose a problem for many products currently on the market.
An internal temperature correction additionally increases stability of the measured values.
Equipped with our G2 interface with web browser configuration and internal data logger, NICO includes features that are much more advanced than those of comparable devices available on the market.
The unified platform of all TriOS photometers also facilitates a standardized spare parts and consumables system, which allows the use of a wide range of accessories for our devices. Furthermore the cutting-edge G2 interface enables quick integration into third-party systems.
Benefits
- Proven UV-absorption method
- Without sampling and preparation of test samples
- Real-time sensor
- Without reagents
- Optical window with nanocoating
Areas of application
- Sewage treatment plants
- Enrionmental monitoring
- Drinking water monitoring
Parameters
- NO3 / Nitrate
- N-NO3 / Nitrate
- NOx / Nitrate
- N-NOx / Nitrate
Technical Data
| Light Source | Xenon flash lamp | |
| Detector | 4 photo diodes + filter | |
| Measurement principle | Attenuation | |
| Optical path | 0.3 mm, 1 mm, 2 mm, 5 mm, 10 mm, 50 mm | |
| Parameter | N-NO3, NO3, N-NOx, NOx (calibrated with NO3 standard solution) | |
| Measurement range at 1 mm path | 0.5…60 mg/L | |
| Measurement range at 10 mm path | 0.05…6 mg/L | |
| Measurement accuracy | ± (5 % + 0.1 mg/L N-NO3) with 10 mm path | |
| ± (5 % + 1 mg/L N-NO3) with 1 mm path | ||
| Turbidity compensation | Yes | |
| Data logger | ~ 2 GB | |
| T100 response time | 20 s | |
| Measurement interval | ≥10 s | |
| Housing material | Stainless steel (1.4571/1.4404) or titanium (3.7035) | |
| Dimensions (L x Ø) | ~ 470 mm x 48 mm (10 mm path) | ~ 18.5“ x 1.9“ (with10 mm path) |
| Weight stainless steel | ~ 3 kg | ~ 6.6 lbs |
| Weight titanium | ~ 2 kg | ~ 4.4 lbs |
| Interface digital | Ethernet (TCP/IP), RS-485 (Modbus RTU) | |
| Power consumption | ≤7 W | |
| Power supply | 12…24 VDC (± 10 %) | |
| Maintenance effort | ≤0.5 h/month (typical) | |
| Calibration/maintenance interval | 24 months | |
| System compatibility | Modbus RTU | |
| Warranty | 1 year (EU: 2 years) | US: 2 years |
| Max. pressure with SubConn | 30 bar | ~ 435 psig |
| Max. pressure with fixed cable | 3 bar | ~ 43.5 psig |
| Max. pressure in FlowCell | 1 bar, 2…4 L/min | ~ 14.5 psig at 0.5 to 1.0 gpm |
| Protection type | IP68 | NEMA 6P |
| Sample temperature | +2…+40 °C | ~ +36 °F to +104 °F |
| Ambient temperature | +2…+40 °C | ~ +36 °F to +104 °F |
| Storage temperature | -20…+80 °C | ~ -4 °F to +176 °F |
| Inflow velocity | 0,1…10 m/s | ~ 0.33 to 33 fps |
