Wischer W55 V2
Description
Versions
Downloads
Description

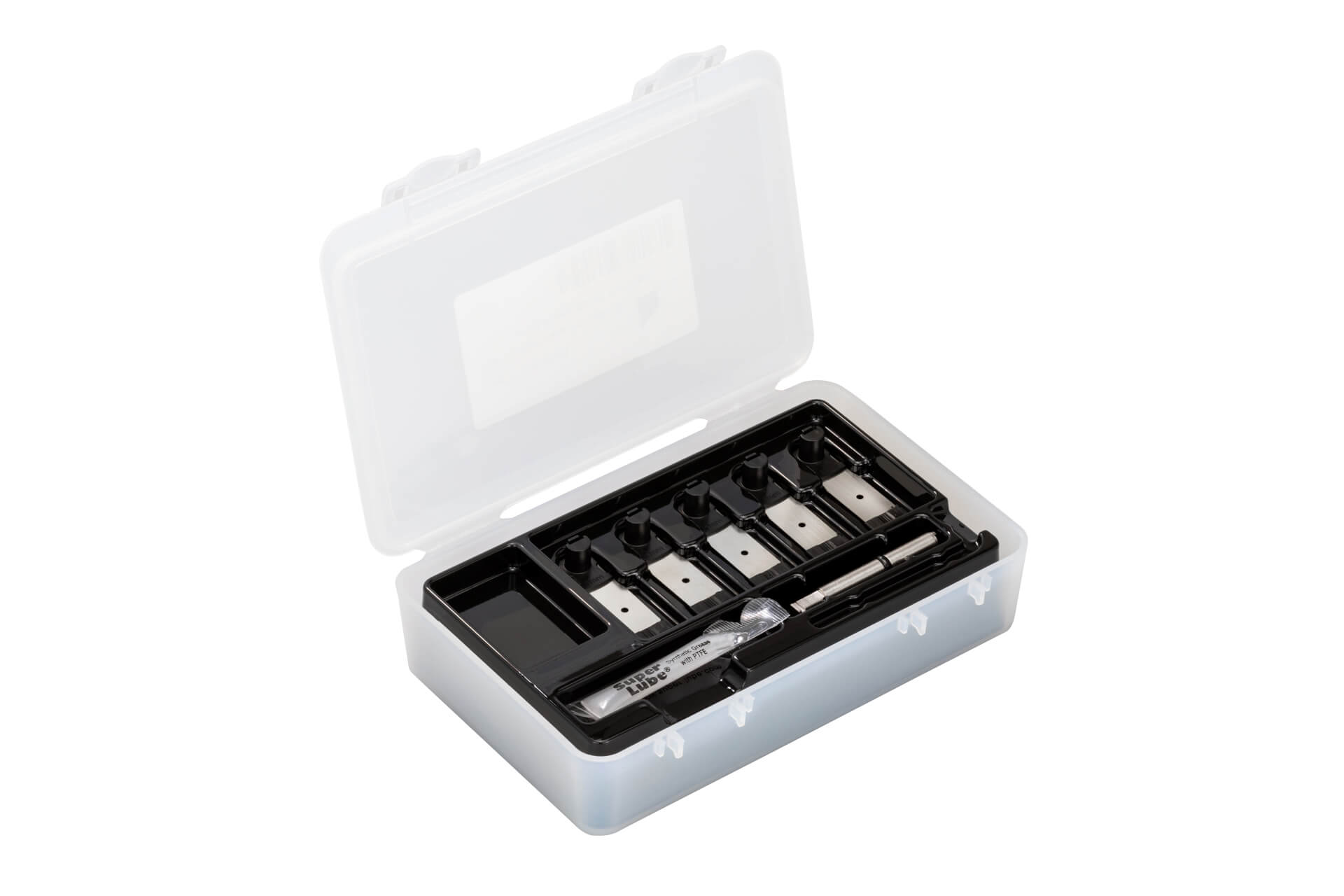

The TriOS Wiper W55 V2 provides an additional cleaning option for all TriOS photometers with path lengths up to 10 mm. The wiper housing can be mounted on the sensor in just a few steps and provides reliable cleaning of the measurement windows. The new magnetic axis lock allows quick and easy wiper blade replacement, without any tools.
The new version of the wiper now features blockage detection and removal, and a service mode that increases the life of the wiper through regular use. The accessory can also be used in seawater up to a depth of 10m.
Versions
Downloads
Technical Data
Technical Data
Technical Data
| Path lengths | 2 mm, 5 mm, 10 mm | |
| Control port | 4-pin M8-plug | |
| A suitable M8 connection cable with open end is included in the scope of delivery. | ||
| Trigger input | 5-24 VDC (±10% ) | |
| Power consumption of trigger input | 2…15 mA | |
| Operating period (max.) | 3 Seconds | |
| Dimensions L x ø | 175 mm x 80 mm | ~ 6.9“ x 3.2“ |
| Weight | 0.52 kg | ~ 1.15 lbs |
| Material | NBR, POM, PE (PP, EPDM), Titanium or V4A | |
| Power supply | 12-24 VDC (± 10 %) | |
| Power consumption | approx. 2-6 W in operation; max. 0.75 W in standby | |
| Maintenance effort | ≤ 0.5 h/month typical | |
| Maintenance interval | depending on application | |
| Warranty | 1 year (EU & USA : 2 years) | |
| Max. pressure | 1 bar | |
| Protection type | IP68 | |
| Inflow Velocity | up to 10 m/s | up to 32.8 fps |
| Oparating temperature | +2…+40°C | ~ +35.6 °F to +104 °F |
| Storage Temperatur | -10…+70 °C | ~ +14 °F to +158 °F |
