OPUS aero
Description
Versions
Downloads
Description
UV spectral sensor for online measurement of nitrate and nitrite in wastewater aeration tank.
OPUS aero is the new generation of spectral sensors for online measurement of nitrate and nitrite in wastewater aeration tank. By analyzing a complete spectrum, OPUS aero is able to provide reliable readings for either N-NO3 only or N-NO3 and N-NO2, depending on the calibration.
OPUS features the new TriOS G2 interface, allowing fast and easy configuration of sensors by using a web browser. Integration into existing process control systems and external data loggers has never been easier.
WiFi connectivity allows laptops, tablets or smartphones to be easily used for control without any special application software or app installation.

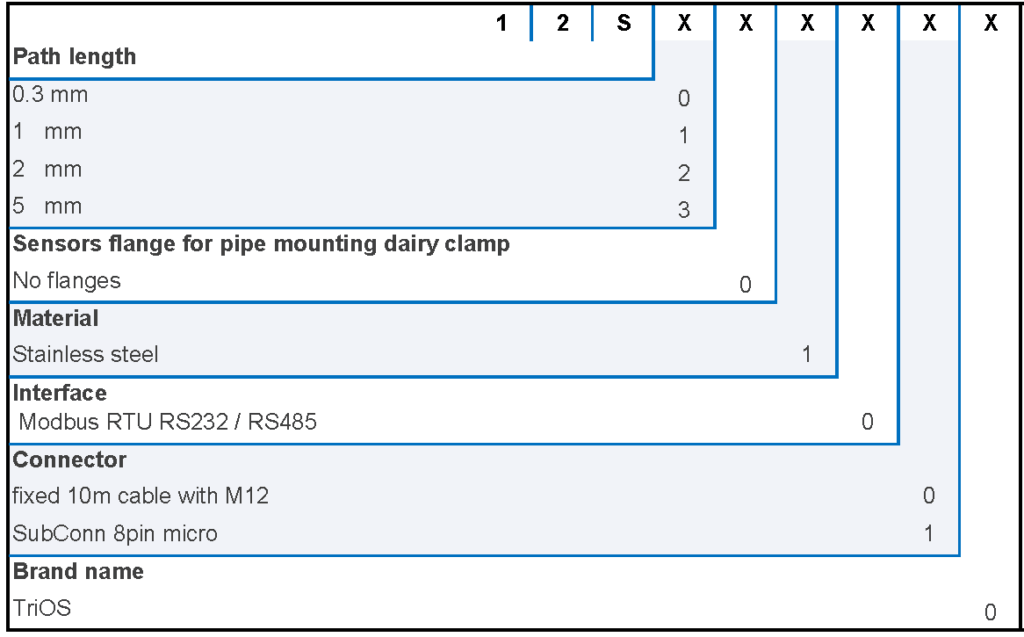

Versions
Downloads
Benefits
- Without sampling and preparation of test samples
- Real-time sensor
- Without reagents
- Optical window with nano coating
- Pre-installed application calibration
Areas of application
- Wastewater aeriation tank
Parameter
- Nitrate
- Nitrite
Technical details
Technical Data
Measurement Ranges
Technical Data
| Light source | Xenon flash lamp | |
| Detector | High-end miniature spectrometer | |
| 256 Channels | ||
| 200 to 360 nm | ||
| 0.8 nm/pixel | ||
| Measurement principle | Attenuation, spectral analysis | |
| Optical path | 0.3 mm, 1 mm, 2 mm | |
| Parameter | Nitrate N-NO3 or Nitrate N-NO3+Nitrite N-NO2 | |
| Measurement accuracy | see measurement ranges next page | |
| Turbidity compensation | Yes | |
| Data logger | ~ 2 GB | |
| T100 response time | 2 min | |
| Measurement interval | ≥ 1 min | |
| Housing material | Stainless steel (1.4571/1.4404) | |
| Dimensions (L x Ø) | 470 mm x 48 mm | ~ 18.5“ x 1.9“ |
| Weight stainless steel | ~ 3 kg | ~ 6.6 lbs |
| Interface digital | Ethernet (TCP/IP) | |
| RS-232 or RS-485 (Modbus RTU) | ||
| Power consumption | ≤ 8 W | |
| Power supply | 12…24 VDC (± 10 %) | |
| Maintenance effort | ≤ 0.5 h/month (typical) | |
| Calibration/maintenance interval | 24 months | |
| System compatibility | Modbus RTU | |
| Warranty | 1 year (EU: 2 years) | USA: 2 years |
| Max. pressure with fixed cable | 3 bar | ~ 43.5 psig |
| Max. pressure in FlowCell | 1 bar, 2…4 L/min | ~ 14.5 psig at 0.5 to 1.0 gpm |
| Protection type | IP68 | NEMA 6P |
| Sample temperature | +2…+40 °C | ~ +36 °F to +104 °F |
| Ambient temperature | +2…+40 °C | ~ +36 °F to +104 °F |
| Storage temperature | -20…+80 °C | ~ -4 °F to +176 °F |
| Inflow velocity | 0,1…10 m/s | ~ 0.33 fps to 33 fps |
Measurement Ranges
| Path (mm) | Nitrate N-NO3 | Nitrite N-NO2 |
|---|---|---|
| 0.3 | 2.4…120 | 4.4..220 |
| 1 | 0.7…36 | 1.3…67 |
| 2 | 0.35…18 | 0.65…33.5 |
